1. Can I use an EEGlab or BioSemi montage that also includes spherical angles Theta and Phi?

  May 21, 2009
(updated February 22, 2011)

2. Are there any differences between the spherical coordinates provided by CSD toolbox or EEGlab / BioSemi?

FAQs May 21, 2009
(updated February 22, 2011)

3. How do I convert between the different spherical angles used in CSD toolbox and EEGlab or BioSemi, or given by generic 3-D Cartesian coordinates?

  May 21, 2009

4. Why do I get an "Inner matrix dimensions must agree" error when submitting data to the CSD.m function?

  June 3, 2009 5. What causes the "G (?-by-?) and H (?-by-?) matrix dimensions must match rows (?) of data matrix" error of function CSD.m?
  June 3, 2009 6. How do I include a linked reference (e.g., linked mastoids, linked ears) in my EEG montage?
  June 3, 2009 7. Should I include a non-cephalic reference in my EEG montage?
  June 2, 2009

8. What about applying a CSD transform to EEG spectra?

  June 3, 2009

9. Can I use CSD data to compute an inverse solution with other source localization tools, such as BESA or LORETA?



June 3, 2009
(updated July 21, 2010)

10. Matlab appears to use a different CSD.m routine - what is going on?

  June 17, 2010

11. After converting surface potentials to CSD, can the converted data be analyzed like surface EEG?

  June 17, 2010

12. Is the polarity of a CSD signal more informative than the polarity of the surface potential?

FAQs July 20, 2010

13. How do I generate CSD transformations from an EEGlab data file?

  June 20, 2010

14. Is there an effcient way to loop through individual, very large EEGlab data files consisting of 3-D data matrices (channels-by-samples-by-epochs)?

  July 21, 2010

15. I am running out of memory when using the CSD.m routine with large data files - are there any work-arounds?



1. Can I use an EEGlab or BioSemi montage that also includes spherical angles Theta and Phi?

Because EEGlab uses a different spherical coordinates system, in which the spherical angle Theta is shifted -90° compared to its CSD toolbox equivalent, the EEGlab coordinates must be converted to CSD toolbox spherical coordinates. Similarly, BioSemi uses a spherical coordinate system (cf. position coordinates) in which the angle Phi denotes vertex downward shifts as opposed to the CSD toolbox which uses the origin of the sphere as the angle reference point. The CSD toolbox function ConvertLocations.m provides an easy means to convert between these different notations (type "help ConvertLocations" at the command window to obtain help on this function).

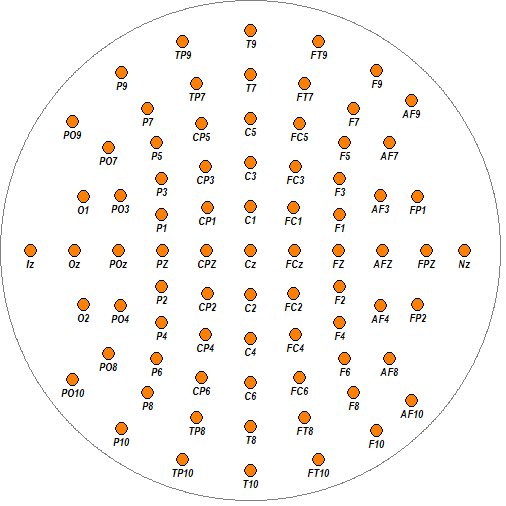

Topography of a 77-channel EEG montage using spherical angles Theta and Phi as defined in EEGlab (orange) with the CSD toolbox spherical coordinate system. The EEGlab angle Theta is rotated -90° (green) compared to the CSD toolbox notation (e.g., site Nz is positioned at the location for T10, site T10 is positioned at the location for Iz, etc.).

Back to top Home Tutorial Errors FAQs


2. Are there any differences between the spherical coordinates provided by CSD toolbox or EEGlab / BioSemi?

Apart from a -90° rotation of spherical angle Theta, EEGlab places standard and extended 10-20-system electrode sites at different locations than CSD toolbox. Likewise, even after adjusting of the spherical angle Phi, some BioSemi position coordinates with nominal identity differ from those provided by the CSD toolbox. In EEGlab and BioSemi, for instance, all electrodes on the x-y plane (i.e., the circle combining the locations Fpz, T7, Oz, and T8) are located -2° below the sphere's equator. In contrast, the CSD toolbox places these locations directly on the equator (i.e., where they belong if one directly follows the logic of the 10-20-system; e.g., cf. Jurcak et al., 2007). Whereas these differences may be of minor importance when mapping volume-conducted scalp potentials, these differences will have a greater impact for the computation of CSD estimates, because the CSD computation is based on relative differences between scalp sites. For example, a prominent visual ERP component at occipital will be differently represented if, let's say, sites P9, P7, P5, P07, and P09 have a different spatial representation. This issue will ultimately also impede on the comparison of findings across studies, a limitation that can be overcome by using a reference-free CSD approach. A different consideration is using a more realistic head model rather than a simplified spherical model, but it does not appear that the EEGlab coordinates are preferrable in this regard when compared to their CSD toolbox counterparts. For these reasons, it is strongly recommended to use spherical locations as specified in the CSD toolbox look-up table (see ASCII file "10-5-System_Mastoids_EGI129.csd"). At the very least, the coordinate system used to specify electrode locations should be clearly indicated.

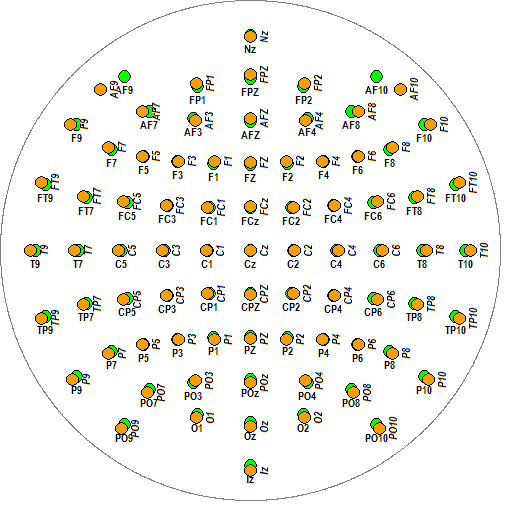

Superimposed topographies of a 77-channel EEG montage using coordinates as specified in CSD toolbox *.csd files (green) or in EEGlab *.ced/*.locs files (orange; rotated labels). Some locations are substantially shifted in EEGlab when compared to CSD toolbox locations implemented using the logic of the 10-20-system (e.g., see sites AF9/10 or P9/10).


Back to top Home Tutorial Errors FAQs


3. How do I convert between the different spherical angles used in CSD toolbox and EEGlab or BioSemi, or given by generic 3-D Cartesian coordinates?

The CSD toolbox function ConvertLocations.m converts between the CSD toolbox spherical coordiante system stored in *.csd files, the EEGlab polar and spherical coordinate systems used in *.locs and *.ced files, the BioSemi spherical coordinate system used in *.biosemi text files consisting of a channel label followed by two spherical angles (cf. position coordinates), or as given by *.xyz text files specifying generic 3-D Cartesian coordinate (channel label followed by x, y, and z coordinates). This function also allows to specify a subset of electrodes included in one of these ASCII coordinate files to generate a new and/or reordered EEG montage (type "help ConvertLocations" at the command window to obtain help on this function).

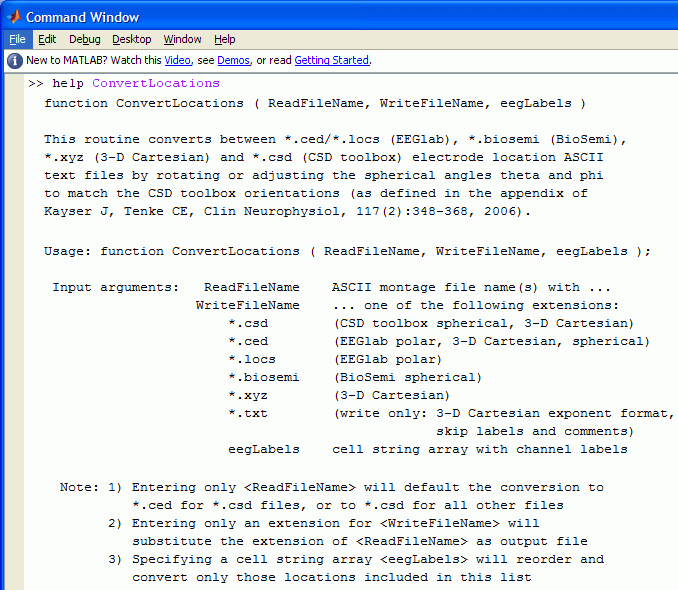

Matlab command window help screen for CSD toolbox function ConvertLocations.m.
